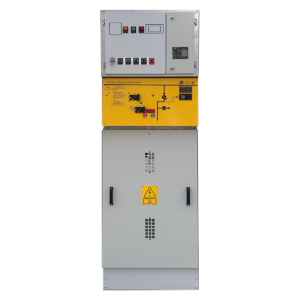

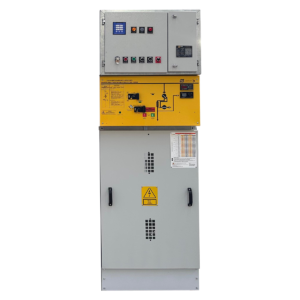

ARME-AIS Series 24 kV

Our ARME-AIS Series 24 kV Metal Enclosed Modular Switchgears have been tested for short circuit, short-term current and internal arc tests in accredited certified laboratories in accordance with IEC 62271-200 standards. Since all equipment can be easily disassembled and installed, maintenance and inspection times are minimized. Type tests were carried out by KEMA - ICMET - LVT.

IEC 62271-1 High Voltage Switchgear and Control Arrangement – Common Features
IEC 62271-200 High Voltage Switchgear and Control Arrangement (up to 52 kV AC)
IEC 62271-100 Alternating Current Circuit Breakers
IEC 62271-102 Alternating Current Disconnectors and Earthing Switches
IEC 62271-105 Alternating Current Switch Fuse Components
IEC 61869-2 Current Transformers
IEC 61869-3 Voltage Transformers
IEC 60273 Post Insulators
IEC 60051 Electrical Measuring Instruments
IEC 60255 Secondary Protection Relays
IEC 61243-1 Voltage Determination Systems

MH24A-0101 Input-Output Functional Unit with Load Breaker Download File
MH24A-0205 Input-Output Functional Unit with Breaker Download File
MH24A-0301 Transformer Protection Unit with Load Breaker + Fuse Combined Download File
MH24A-0401 Voltage Measurement Functional Unit Download File
MH24A-0501 Cable Connection Switchgear Download File
MH24A-0605 Bus Coupling with Circuit Breaker Download File
MH24A-0701 With Load Breaker Current-Voltage Measurement Functional Unit Download File
MH24A-0805 Incoming - Outgoing Switchgear with Circuit Breaker & Voltage Measuring& Relay Combination Download File
MH24A-0901 Incoming - Outgoing Switchgear with Disconnect Switch Download File

Optional Product Types

MH24A-0805-A Download File
MH24A-0805-B Download File
MH24A-0805-C Download File
MH24A-0805-U Download File
